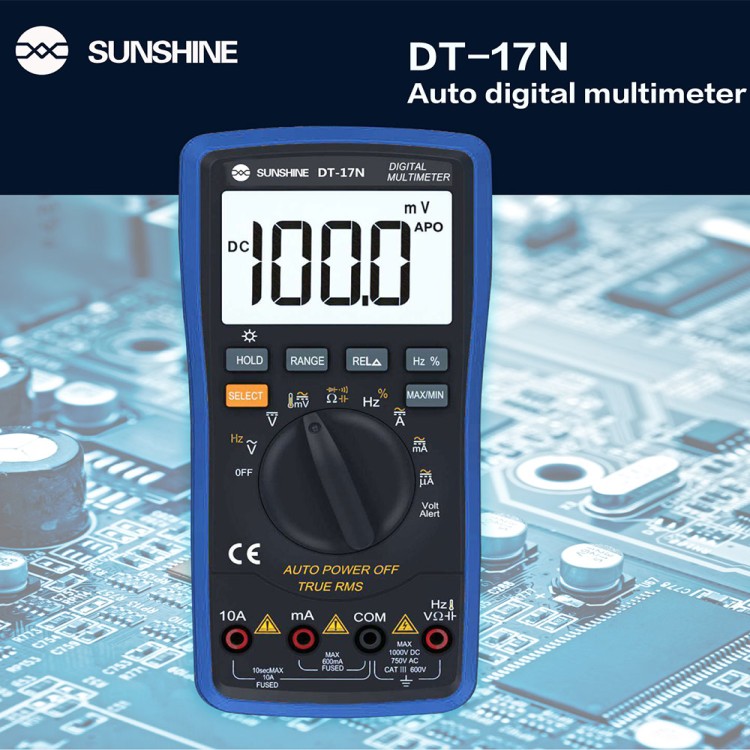

Sunshine DT 17N Digital Multimeter
Product Code: MM006Category: Multi-Meter
Sunshine DT-17N digital Multimeter is a stable performance,high precision,reliability battery-driven automatic digital multimeter,high pressure alarm and overload protection.
Name: Sunshine DT 17N Digital
Multimeter
Model: DT 17N
Brand: Sunshine
Origin: China
Details: Sunshine DT-17N is 35/6 automatic digital instrument, is a stable performance, high precision, high reliability; with battery-driven automatic digital multimeter, the instrument adopts 21mm high LCD display, clear reading; About 15 seconds delay backlight, high pressure alarm and overload protection .
It will more
convenient to use. This series of instruments can be used to measure the DC
voltage and AC voltage DC current and AC current resistance, Capacitance Diode,
temperature, on-off test.
True RMS
measurement , LED high-voltage output measurement and frequency parameters is a
superior performance instrument, is a ideal tool for the laboratory, factory,
Radio enthusiasts.
Specification:
- Operating
Temperature: 0~40℃
- Voltage:
9V
- Display:
led display 4 Digit
- Dimension:
184x90x46cm
- Feature:
automatic identification,without adjusted
- Test
way: double integral A/D conversion
- Test
temperature: 20℃~1000℃
- Sampling
rate: 3 times per second
- Max
Display: 5999(5 5 /6)bits Automatic polarity disaply
- Work
environment: (0-40)℃,Relative humidity<80%
- Measuring
Current Range: AC10A/DC10A
- Measuring
Voltage Range: AC700V/DC1000V
- Measuring
Resistance Range: 600Ω-60MΩ
- Measuring
Capacitance Range: 60nF-6000uF
- Dimensions:
184*90*46cm
Package Includes
- 1 Pcs Sunshine DT-17N
- 1 Pair Test Leads Probe
- 1 Pair Temperature Probe
- 1 Pcs English Manual
- (LRT754)
Name: Sunshine DT 17N Digital Multimeter
Model: DT 17N
Brand: Sunshine
Origin: China
Details: Sunshine DT-17N is 35/6 automatic digital instrument, is a stable performance, high precision, high reliability; with battery-driven automatic digital multimeter, the instrument adopts 21mm high LCD display, clear reading; About 15 seconds delay backlight, high pressure alarm and overload protection .
It will more convenient to use. This series of instruments can be used to measure the DC voltage and AC voltage DC current and AC current resistance, Capacitance Diode, temperature, on-off test.
True RMS measurement , LED high-voltage output measurement and frequency parameters is a superior performance instrument, is a ideal tool for the laboratory, factory, Radio enthusiasts.
Specification:
- Operating Temperature: 0~40℃
- Voltage: 9V
- Display: led display 4 Digit
- Dimension: 184x90x46cm
- Feature: automatic identification,without adjusted
- Test way: double integral A/D conversion
- Test temperature: 20℃~1000℃
- Sampling rate: 3 times per second
- Max Display: 5999(5 5 /6)bits Automatic polarity disaply
- Work environment: (0-40)℃,Relative humidity<80%
- Measuring Current Range: AC10A/DC10A
- Measuring Voltage Range: AC700V/DC1000V
- Measuring Resistance Range: 600Ω-60MΩ
- Measuring Capacitance Range: 60nF-6000uF
- Dimensions: 184*90*46cm
Package Includes
- 1 Pcs Sunshine DT-17N
- 1 Pair Test Leads Probe
- 1 Pair Temperature Probe
- 1 Pcs English Manual
- (LRT754)
