Hiwonder LFD-01M Robot Servo 6V 14g Micro Servo Anti-blocking with Metal Gear
Product Code: MSM009Category: Servo Motor
Hiwonder LFD-01M Robot Servo 6V 14g Micro Servo Anti-blocking with Metal Gear
Order by Call
Hiwonder LFD-01M Robot Servo 6V 14g Micro Servo Anti-blocking with Metal Gear
- Weight: 14g
- No-load current: 100mA
- Operating Voltage: 4.8V-6V
- Torque: 1.5kg.cm(4.8v)1.8kg.cm(6v)
- Speed: 0.12sec/60° (4.8v) 0.10sec/60°(6V)
Feature
- ①Working voltage is 4.8-6V.
- ②Built-in anti-blocking algorithm is more durable.
- ③Optimize the design of metal gears to make the operation more smooth.
- ④Using the high quality material for better performance.
- ⑤Provide 51, Arduino, STM32 servo control program.
Product Parameters
- Product weight: 14g

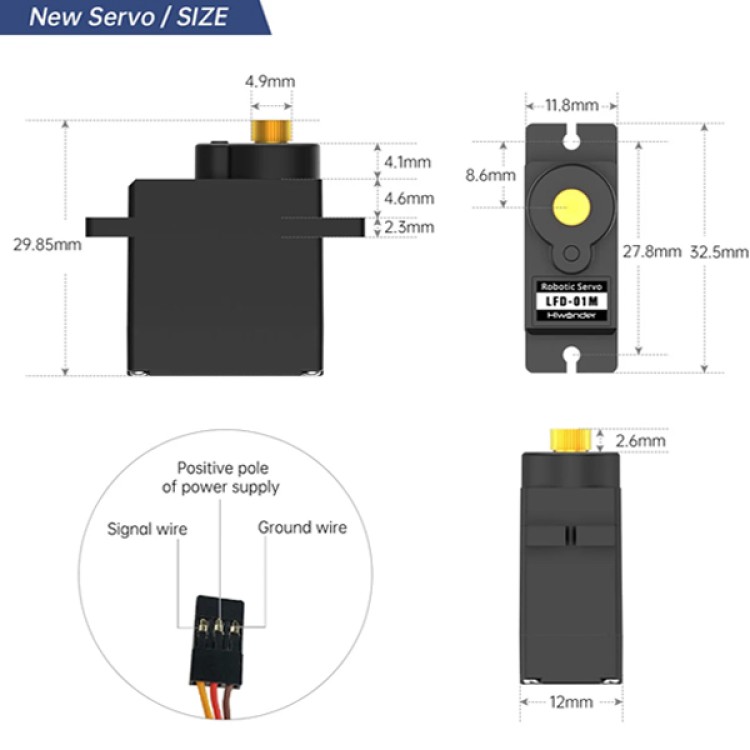

- Product size: 22.3*12*23.2mm
- Working voltage: 4.8-6V
- Rotation speed: 0.12sec/60° 6V
- Stalled rotor torque: ≥1.8KG.cm 6V
- Rotation range: 0~180°
- No-load current: ≤80mA
- Locked rotor current: ≤1.1A
- Control method: PWM pulse width control
- PWM pulse width range: 500~2500us, corresponding to 0~180°
- Gear type: metal teeth
- Product line length: 455±5mm (Exposed without plug)
- Applicable to: various types of bionic robot joints.
Hiwonder LFD-01M Robot Servo 6V 14g Micro Servo Anti-blocking with Metal Gear
- Weight: 14g
- No-load current: 100mA
- Operating Voltage: 4.8V-6V
- Torque: 1.5kg.cm(4.8v)1.8kg.cm(6v)
- Speed: 0.12sec/60° (4.8v) 0.10sec/60°(6V)
Feature
- ①Working voltage is 4.8-6V.
- ②Built-in anti-blocking algorithm is more durable.
- ③Optimize the design of metal gears to make the operation more smooth.
- ④Using the high quality material for better performance.
- ⑤Provide 51, Arduino, STM32 servo control program.
Product Parameters
- Product weight: 14g
- Product size: 22.3*12*23.2mm
- Working voltage: 4.8-6V
- Rotation speed: 0.12sec/60° 6V
- Stalled rotor torque: ≥1.8KG.cm 6V
- Rotation range: 0~180°
- No-load current: ≤80mA
- Locked rotor current: ≤1.1A
- Control method: PWM pulse width control
- PWM pulse width range: 500~2500us, corresponding to 0~180°
- Gear type: metal teeth
- Product line length: 455±5mm (Exposed without plug)
- Applicable to: various types of bionic robot joints.
Watch this video it will give you a clear idea about this product.
