LM386 OP AMP
The LM386 is an integrated circuit containing a low voltage audio power amplifier.[1] It is suitable for battery-powered devices such as radios, guitar amplifiers, and hobby electronics projects. The IC consists of an 8 pin dual in-line package (DIP-8) and can output 0.25 to 1 watts of power depending on the model using a 9-volt power supply.
The LM386 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200. The inputs are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24 milliwatts when operating from a 6 volt supply, making the LM386 ideal for battery operation.

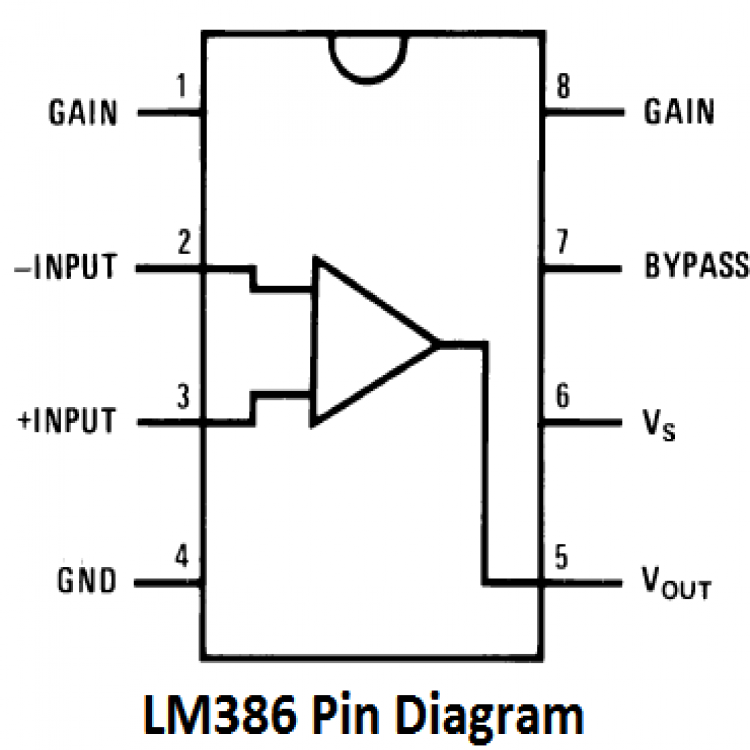

LM386 OP AMP
- Battery operation
- Minimum external parts
- Wide supply voltage range: 4V-12V or 5V-18V
- Low quiescent current drain: 4mA
- Voltage gains from 20 to 200
Watch this video it will give you a clear idea about this product.
