MAX30102 Heart Rate Pulse Oximeters Pulse Rate Sensor
Product Code: SNM025Category: Sensor Modules
MAX30102 is an integrated pulse oximetry and heart-rate monitor module. It includes internal LEDs,photodetectors,optical elements,and low-noise electronics with ambient light rejection.
Description
MAX30102 Pulse Oximeter & Heart-Rate Module
The MAX30102 provides a complete system solution to ease the design-in process for mobile and wearable devices. The MAX30102 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDs. Communication is through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.
Tiny 12.7mm x 12.7mm (0.5in x 0.5in) Board Size
Free Algorithm
Highly-integrated, small-size sensor
Non-chest based heart-rate/SpO2 detection
Ultra-low power consumption
The Main Parameters:
LED peak wavelength: 660nm/880nm
LED power supply voltage: 3.3~5V
Detection signal type: light reflection signal (PPG)
Output signal interface : I2C interface
Communication interface voltage: 1.8~3.3V~5V (optional)
Board reserved assembly hole size: 0.5 x 8.5mm

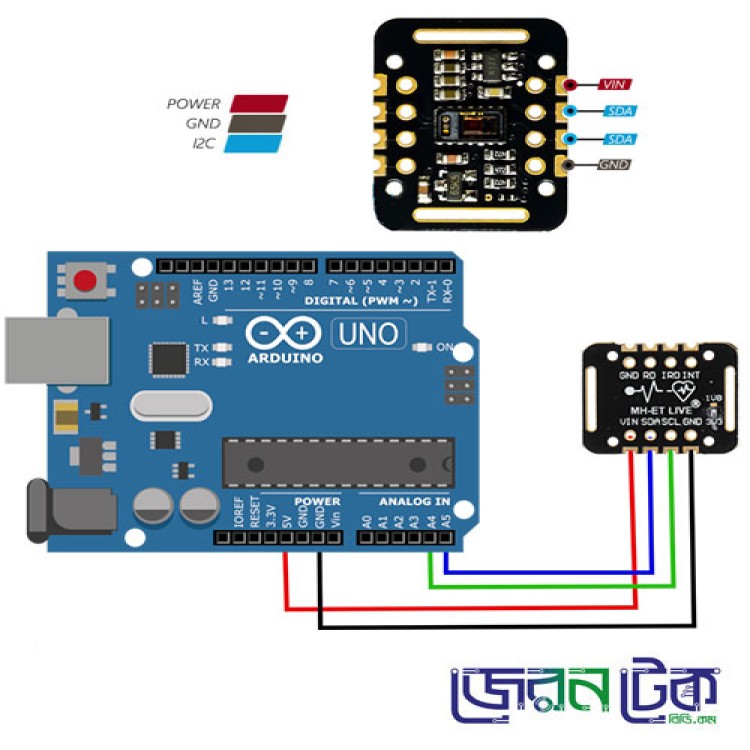

Pin Description:
VIN: main power input terminal 1.8-5V
3-bit pad: Select the pull-up level of the bus, depending on the pin master voltage, select 1.8v or 3_3v (this terminal contains 3.3V and above)
SCL: the clock connected to the I2C bus;
SDA: data connected to the I2C bus;
INT : Interrupt pin of the MAX30102 chip;
RD: RED LED ground terminal of MAX30102 chip, generally not connected;
IRD: The IR LED ground of the MAX30102 chip is generally not connected;
GND: Ground wire.
Package List:
1 x MAX30102 Pulse Oximeter & Heart-Rate Module
Description
MAX30102 Pulse Oximeter & Heart-Rate Module
The MAX30102 provides a complete system solution to ease the design-in process for mobile and wearable devices. The MAX30102 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDs. Communication is through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.
Tiny 12.7mm x 12.7mm (0.5in x 0.5in) Board Size
Free Algorithm
Highly-integrated, small-size sensor
Non-chest based heart-rate/SpO2 detection
Ultra-low power consumption
The
Main Parameters:
LED peak wavelength: 660nm/880nm
LED power supply voltage: 3.3~5V
Detection signal type: light
reflection signal (PPG)
Output signal interface : I2C
interface
Communication interface voltage:
1.8~3.3V~5V (optional)
Board reserved assembly hole
size: 0.5 x 8.5mm
Pin
Description:
VIN: main power input terminal
1.8-5V
3-bit pad: Select the pull-up
level of the bus, depending on the pin master voltage, select 1.8v or 3_3v
(this terminal contains 3.3V and above)
SCL: the clock connected to the
I2C bus;
SDA: data connected to the I2C
bus;
INT : Interrupt pin of the MAX30102 chip;
RD: RED LED ground terminal of
MAX30102 chip, generally not connected;
IRD: The IR LED ground of the
MAX30102 chip is generally not connected;
GND: Ground wire.
Package List:
1 x MAX30102 Pulse Oximeter & Heart-Rate Module
Watch this video it will give you a clear idea about this product.
