Power Bank Controller with LCD
Product Code: PCM003Category: Buck Boost/Charging Module
Power Bank Controller with LCD
Product Description
The power bank charger module is now available in Bangladesh. You can make your power bank smarter by using this module.
Product Introduction:
This is the mobile power module Accessories, 18650 Circuit board shell.
Meet the individual needs of your DIY, but you must understand basic electronic assembly.
Motherboard comes with protection function: Charging overcharge protection, over-discharge protection, overcurrent protection.
Intelligent output device after charging full, automatically stop charging, to prevent mobile phones overcharge.
Output voltage and current stable, will not harm user devices.
Specifications:
Micro USB input: 5V 1A
USB Output: 5V 2.1A / 5V 1A(Dual USB interface)
Charging display: intelligent digital display
Batteries Type: liquid lithium-ion batteries (18650)
Product Size: 57mm x 28mm
Screen size:27mm x 17mm
Installation instructions:

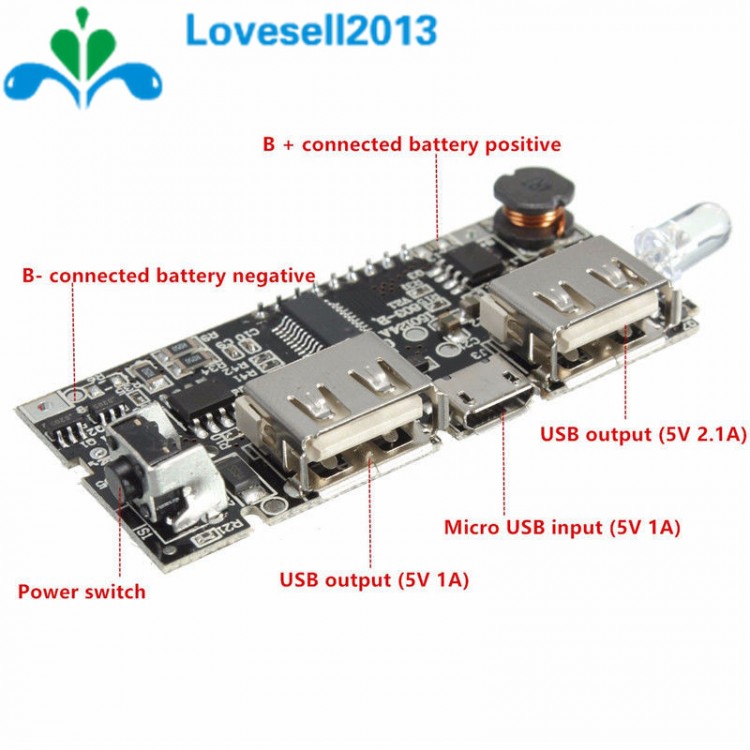

The circuit board is connected to the battery negative B-, B + is the positive, do not connecting reversed, connecting reversed will burn the board, the battery is connected in parallel welding, assembling battery. Note that the insulation between the battery and the circuit board, battery lead not to touch the circuit board, so as not to cause a short circuit.
Product Description
The power bank charger module is now available in Bangladesh. You can make your power bank smarter by using this module.
Product Introduction:
This is the mobile power module Accessories, 18650 Circuit board shell.
Meet the individual needs of your DIY, but you must understand basic electronic assembly.
Motherboard comes with protection function: Charging overcharge protection, over-discharge protection, overcurrent protection.
Intelligent output device after charging full, automatically stop charging, to prevent mobile phones overcharge.
Output voltage and current stable, will not harm user devices.
Specifications:
Micro USB input: 5V 1A
USB Output: 5V 2.1A / 5V 1A(Dual USB interface)
Charging display: intelligent digital display
Batteries Type: liquid lithium-ion batteries (18650)
Product Size: 57mm x 28mm
Screen size:27mm x 17mm
Installation instructions:
The circuit board is connected to the battery negative B-, B + is the positive, do not connecting reversed, connecting reversed will burn the board, the battery is connected in parallel welding, assembling battery. Note that the insulation between the battery and the circuit board, battery lead not to touch the circuit board, so as not to cause a short circuit.
Watch this video it will give you a clear idea about this product.
