W1209 Digital Temperature Controller
Product Code: MOT004Category: Other Modules
W1209 Mini thermostat Temperature controller is low-cost 12V Temperature controller with 7-segment display and 3 switch keypad for setting temperature .
Digital Temperature Controller_W1209

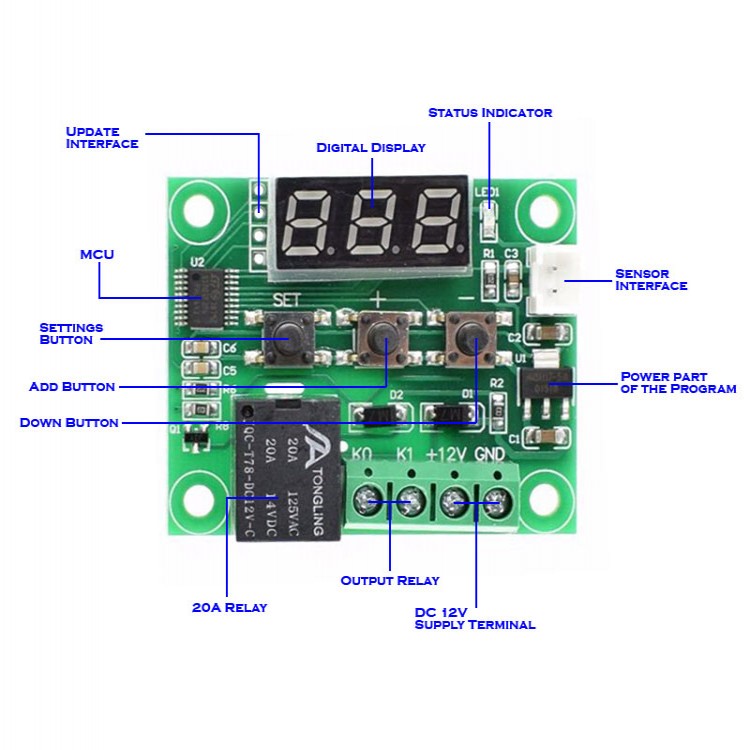

W1209 Digital Temperature Control Switch is a programmable themrostat. The same module can be used in both controlling / maintaining Cold and Hot temperatures. Parameter 0 can be set to either Hot or Cold Control setting. The relay module is based on a microcontroller (MCU) and has 7 user configurable parameters accessible using 3 push buttons.
Features:
· Precise Temperature Control upto 0.1C
· Fast Acting Control of 0.5 seconds response time
· With Water proof sensor
· LED Display for Temperature, settings and warning
· LED Relay Status Indicator
· Output Relay can be used with both AC and DC circuits
Application:
· Indoor Room Temperature Control
· Aquarium temperature controller
· Temperature controller for Controlled Temperature sheds
· Food and Beverage temperature controller
· Temperature controller for Health Care applications
Specification:
· Temperature range :-50-110 ℃
· Dimensions: 48.5 * 40mm
· Temperature control mode: ON / OFF
· Resolution：When temperature is 0.1℃, the resolution is -9.9~99.9, other temperature segment is 1℃
· Control accuracy: 0.1 ℃
· Hysteresis accuracy: 0.1℃
· Refresh rate: 0.5S
· High temperature protection： 0-110℃
· Supply voltage: DC 12V
· Static current: ≤ 35MA, attract current ≤ 65MA
· Operating voltage: DC 12V
· Output Relay Specifications:
· Max Current: 20A @ 110VAC, 10A @ 220VAC or 20A @ 14VDC
· Operating Voltage: 115VAC, 220VAC, 50VDC
· Measurement input: NTC (10K 0.5%) Waterproof Sensor
· Environmental requirements: -10 ~ 60 ℃ ，Humidity 20% -85%
· Probe Length: ~31cm / 12.2in (including thermocouple and wire)
Digital Temperature Controller_W1209
W1209 Digital Temperature Control Switch is a programmable themrostat. The same module can be used in both controlling / maintaining Cold and Hot temperatures. Parameter 0 can be set to either Hot or Cold Control setting. The relay module is based on a microcontroller (MCU) and has 7 user configurable parameters accessible using 3 push buttons.
Features:
·
Precise
Temperature Control upto 0.1C
·
Fast
Acting Control of 0.5 seconds response time
·
With
Water proof sensor
·
LED
Display for Temperature, settings and warning
·
LED
Relay Status Indicator
·
Output
Relay can be used with both AC and DC circuits
Application:
·
Indoor
Room Temperature Control
·
Aquarium
temperature controller
·
Temperature
controller for Controlled Temperature sheds
·
Food
and Beverage temperature controller
·
Temperature
controller for Health Care applications
Specification:
·
Temperature
range :-50-110 ℃
·
Dimensions:
48.5 * 40mm
·
Temperature
control mode: ON / OFF
·
Resolution：When temperature is 0.1℃, the
resolution is -9.9~99.9, other temperature segment is 1℃
·
Control
accuracy: 0.1 ℃
·
Hysteresis
accuracy: 0.1℃
·
Refresh
rate: 0.5S
·
High
temperature protection：
0-110℃
·
Supply
voltage: DC 12V
·
Static
current: ≤ 35MA, attract current ≤ 65MA
·
Operating
voltage: DC 12V
·
Output
Relay Specifications:
·
Max
Current: 20A @ 110VAC, 10A @ 220VAC or 20A @ 14VDC
·
Operating
Voltage: 115VAC, 220VAC, 50VDC
·
Measurement
input: NTC (10K 0.5%) Waterproof Sensor
·
Environmental
requirements: -10 ~ 60 ℃ ，Humidity 20% -85%
·
Probe
Length: ~31cm / 12.2in (including thermocouple and wire)
Watch this video it will give you a clear idea about this product.
