42J1848EC-1000-LS High Performance NEMA 17 Closed Loop Hybrid Stepper Motor
Product Code: STM008Category: Stepper Motors
Model: NEMA 17-42J1848EC-1000-LS
Brand: Just Motion Control (JMC)
Origin: China
Discount: 0% OFF
Availability: Stock Available
Brand: Just Motion Control (JMC)
Origin: China
Discount: 0% OFF
Availability: Stock Available
42J1848EC-1000-LS High Performance NEMA 17 Closed Loop Hybrid Stepper Motor
Order by Call
42J1848EC-1000-LS High Performance NEMA 17 Closed Loop Hybrid Stepper Motor.
Technical Specifications
- Frame Size: NEMA 17 (42mm).
- Holding Torque: 0.48 N.m.
- Encoder Resolution: 1000 lines (ensuring real-time error correction and no step loss).
- Rated Current: 1.2A per phase.
- Step Angle: 1.8° (200 steps per revolution).
- Shaft Diameter: 5mm.
- Motor Length: 68mm to 69.8mm.
- Weight: Approximately 0.198 kg to 0.8 kg (depending on kit configuration).
Key Features
- Closed-Loop System: Integrates a 1000-line encoder to eliminate missed steps and improve high-speed performance compared to traditional open-loop motors.
- Hybrid Design: Combines the high torque of a stepper motor with the precision of a servo.
- Stability: Features low vibration, low heat generation, and high reliability with no "hunting" or gain tuning required.
- Plug-and-Play: Compatible with standard controllers supporting pulse/direction input signals.
Usage & Compatibility
- Applications: Ideal for engraving machines, medical devices, optical inspection, and automated assembly lines.
- Recommended Drivers: 2HSS57-42
42J1848EC-1000-LS High Performance NEMA 17 Closed Loop Hybrid Stepper Motor.
Technical Specifications
- Frame Size: NEMA 17 (42mm).
- Holding Torque: 0.48 N.m.
- Encoder Resolution: 1000 lines (ensuring real-time error correction and no step loss).
- Rated Current: 1.2A per phase.
- Step Angle: 1.8° (200 steps per revolution).
- Shaft Diameter: 5mm.
- Motor Length: 68mm to 69.8mm.
- Weight: Approximately 0.198 kg to 0.8 kg (depending on kit configuration).
Key Features
- Closed-Loop System: Integrates a 1000-line encoder to eliminate missed steps and improve high-speed performance compared to traditional open-loop motors.
- Hybrid Design: Combines the high torque of a stepper motor with the precision of a servo.
- Stability: Features low vibration, low heat generation, and high reliability with no "hunting" or gain tuning required.
- Plug-and-Play: Compatible with standard controllers supporting pulse/direction input signals.
Usage & Compatibility
- Applications: Ideal for engraving machines, medical devices, optical inspection, and automated assembly lines.
- Recommended Drivers: 2HSS57-42
Watch this video it will give you a clear idea about this product.
Related Product
In Stock

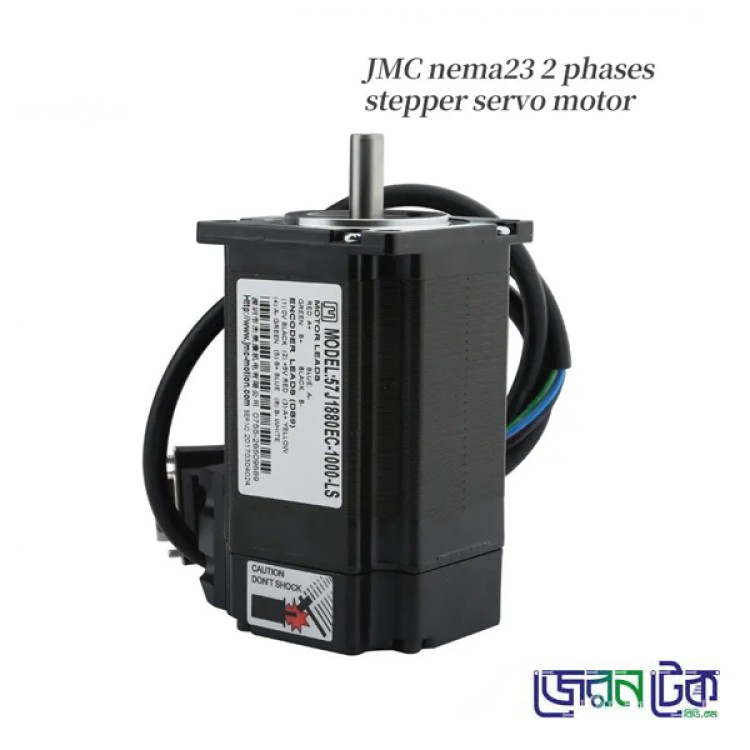

NEMA23 57j1880ec-1000-LS 2 Phase Hybrid Closed Loop Stepper Motor Torque 2nm
