GVDA GD109 Digital Pen Type Multimeter
Product Code: MM010Category: Multi-Meter
GD109 is a pocket type digits pen-type smart multimeter,with true RMS.It will automatically identify DC voltage/AC voltage/resistance and measure.
GVDA Digital Pen Type Multimeter DC AC Voltage Tester
Smart Multi-meter Voltmeter NCV Phase Sequence Auto Ranging Multimeter
GD109 is a pocket type digits
pen-type smart multimeter, with true RMS. It will automatically identify DC
voltage/AC voltage/resistance and measure, with no need to turn the dial to
switch, easy to operate. Also, it features with stable performance, high precision,
auto-off after 15min non-operation for energy saving, capacitance/diode/more
test, overload protection, continuity test, non-contact voltage
measurement(NCV), zero live line measurement, phase sequence measurement, etc.
A perfect tool for professional, factory, school, enthusiast or family
use.

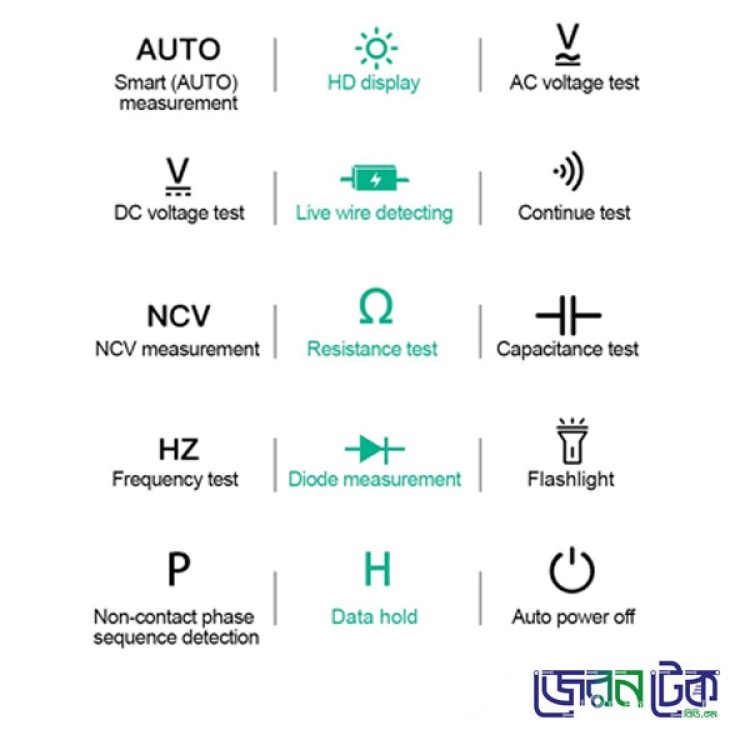

Special Points
VERSATILE PEN MULTIMETER:
This multimeter features test
of voltage / resistance / capacitance / diode / frequency / NCV/
continuity, zero line & non-contact phase sequence detection, etc.
FAST RESPONSE & HIGH ACCURACY:
GVDA GD109, 4000 counts digital pen
type multimeter, has a sampling speed of 3 times per second and high precision
measurement.
EASY OPERATION:
It has Color LCD clear screen, easy to read the measured
values, flashlight available for darkness, data retention function convenient
to query data, alarm beep when in use.
DURABLE MATERIAL & PORTABLE
SIZE:
The meter, made from selected
electronic components and sturdy plastic housing, is designed with light weight
and easy-to-carry pocket size, comfort to grip.
WIDE APPLICATION:
The digital multimeter--a handy
instrument and assistant, for testing, diagnosing and solving a variety of
automotive and daily household electrical problems safely and accurately.
Multimeter classification
1. Multimeter (multimeter, triple
meter, multiplex meter)
According to the characteristics of
the multimeter, the multimeter can be divided into;
1. Pointer multimeter;
2. Portable digital multimeter;
3. Desktop digital multimeter;
4. Pen-type digital multimeter;
Technical Data
|
Main Functions |
Measuring Range |
Accuracy |
|
AC Voltage Measurement |
4V/4V/400V/600V |
±(0.8%+3) |
|
DC Voltage Measurement |
4V/4V/400V/600V |
±(0.5%+3) |
|
Resistance range |
4000Ω/40KΩ/400KΩ/4MΩ |
±(1.0%+5) |
|
40MΩ |
±(1.5%+10) |
|
|
Capacitance range |
40nF/400nF/4uF/40uF/400uF |
±(4.0%+5) |
|
4mF |
±(5.0%+5) |
|
|
Frequency range |
40Hz/400Hz/4KHz/40kHz/400kHz/4MHZ |
±(1.0%+3) |
|
Max. Counts |
4000 counts |
|
|
LCD Screen |
VA HD Color LCD Screen |
|
|
Sampling Rate: |
approx.3 times/ one second |
|
|
Smart Measurement |
for AC DC Voltage, resistance
and continuity) |
|
|
Live line detection |
Yes (sound and light alarm) |
|
|
Continuity Test |
<Approx. 50ohm，Buzzer will sound and the indicator light will be on. |
|
|
Diode test |
V (sound alarm) |
|
|
Non Contact Phase sequence
detection |
yes |
|
|
Gear Selection /Data hold /True
RMS |
yes |
|
|
Over range indication: |
"OL" |
|
|
Input polarity indication |
display "-" |
|
|
Low batery indication |
yes |
|
|
Auto power off / Flashlights |
yes |
|
|
Battery |
2x 1.5V AAA Batteries |
|
|
Item Weight |
about76g |
|
|
Item size |
172x30x22mm |
|
|
Gift box dimension |
181x57x51mm |
|
|
Whole unit Weight |
170g |
|
|
Working Condition |
Temp. : 0~40°C(<80% RH，Humidity: <10°C non condensing) |
|
|
Storage Condition |
Temp. : -10~60°C Humidity:
(<70% RH, remove the battery) |
|
|
Safety rating |
CAT. III 600V；Pollution level2, Altitude < 2000m |
|
|
Packing Include |
1pc Multimeter / 1pc tester cable
/ 1pc english user manual |
|
GVDA Digital Pen Type Multimeter DC AC Voltage Tester
Smart Multi-meter Voltmeter NCV Phase Sequence Auto Ranging Multimeter
GD109 is a pocket type digits
pen-type smart multimeter, with true RMS. It will automatically identify DC
voltage/AC voltage/resistance and measure, with no need to turn the dial to
switch, easy to operate. Also, it features with stable performance, high precision,
auto-off after 15min non-operation for energy saving, capacitance/diode/more
test, overload protection, continuity test, non-contact voltage
measurement(NCV), zero live line measurement, phase sequence measurement, etc.
A perfect tool for professional, factory, school, enthusiast or family
use.
Special Points
VERSATILE PEN MULTIMETER:
This multimeter features test
of voltage / resistance / capacitance / diode / frequency / NCV/
continuity, zero line & non-contact phase sequence detection, etc.
FAST RESPONSE & HIGH ACCURACY:
GVDA GD109, 4000 counts digital pen
type multimeter, has a sampling speed of 3 times per second and high precision
measurement.
EASY OPERATION:
It has Color LCD clear screen, easy to read the measured
values, flashlight available for darkness, data retention function convenient
to query data, alarm beep when in use.
DURABLE MATERIAL & PORTABLE
SIZE:
The meter, made from selected
electronic components and sturdy plastic housing, is designed with light weight
and easy-to-carry pocket size, comfort to grip.
WIDE APPLICATION:
The digital multimeter--a handy
instrument and assistant, for testing, diagnosing and solving a variety of
automotive and daily household electrical problems safely and accurately.
Multimeter classification
1. Multimeter (multimeter, triple
meter, multiplex meter)
According to the characteristics of
the multimeter, the multimeter can be divided into;
1. Pointer multimeter;
2. Portable digital multimeter;
3. Desktop digital multimeter;
4. Pen-type digital multimeter;
Technical Data
|
Main Functions |
Measuring Range |
Accuracy |
|
AC Voltage Measurement |
4V/4V/400V/600V |
±(0.8%+3) |
|
DC Voltage Measurement |
4V/4V/400V/600V |
±(0.5%+3) |
|
Resistance range |
4000Ω/40KΩ/400KΩ/4MΩ |
±(1.0%+5) |
|
40MΩ |
±(1.5%+10) |
|
|
Capacitance range |
40nF/400nF/4uF/40uF/400uF |
±(4.0%+5) |
|
4mF |
±(5.0%+5) |
|
|
Frequency range |
40Hz/400Hz/4KHz/40kHz/400kHz/4MHZ |
±(1.0%+3) |
|
Max. Counts |
4000 counts |
|
|
LCD Screen |
VA HD Color LCD Screen |
|
|
Sampling Rate: |
approx.3 times/ one second |
|
|
Smart Measurement |
for AC DC Voltage, resistance
and continuity) |
|
|
Live line detection |
Yes (sound and light alarm) |
|
|
Continuity Test |
<Approx. 50ohm，Buzzer will sound and the indicator light will be on. |
|
|
Diode test |
V (sound alarm) |
|
|
Non Contact Phase sequence
detection |
yes |
|
|
Gear Selection /Data hold /True
RMS |
yes |
|
|
Over range indication: |
"OL" |
|
|
Input polarity indication |
display "-" |
|
|
Low batery indication |
yes |
|
|
Auto power off / Flashlights |
yes |
|
|
Battery |
2x 1.5V AAA Batteries |
|
|
Item Weight |
about76g |
|
|
Item size |
172x30x22mm |
|
|
Gift box dimension |
181x57x51mm |
|
|
Whole unit Weight |
170g |
|
|
Working Condition |
Temp. : 0~40°C(<80% RH，Humidity: <10°C non condensing) |
|
|
Storage Condition |
Temp. : -10~60°C Humidity:
(<70% RH, remove the battery) |
|
|
Safety rating |
CAT. III 600V；Pollution level2, Altitude < 2000m |
|
|
Packing Include |
1pc Multimeter / 1pc tester cable
/ 1pc english user manual |
|
Watch this video it will give you a clear idea about this product.
