IRFP3205 Mosfet
The IRF3205 is a high current N-Channel MOSFET that can switch currents upto 110A and 55V. The specialty of the MOSFET is that it has very low on resistance of only 8.0mΩ making it suitable for switching circuits like Inverters, motor speed control, DC-DC converter etc. It is also one of the easily available and cheap MOSFET with a low on-resistance.
So if you looking for a MOSFET to be used in your switching circuit that operates below 55V and less than 110A you can consider using the IRF3205. Note that the IRF3205 has high threshold voltage and hence not ideal for on/off control with embedded controllers. You can try the IRF540N for that purpose.
The IRF3205 is a high current N-Channel MOSFET that can switch currents upto 110A and 55V.

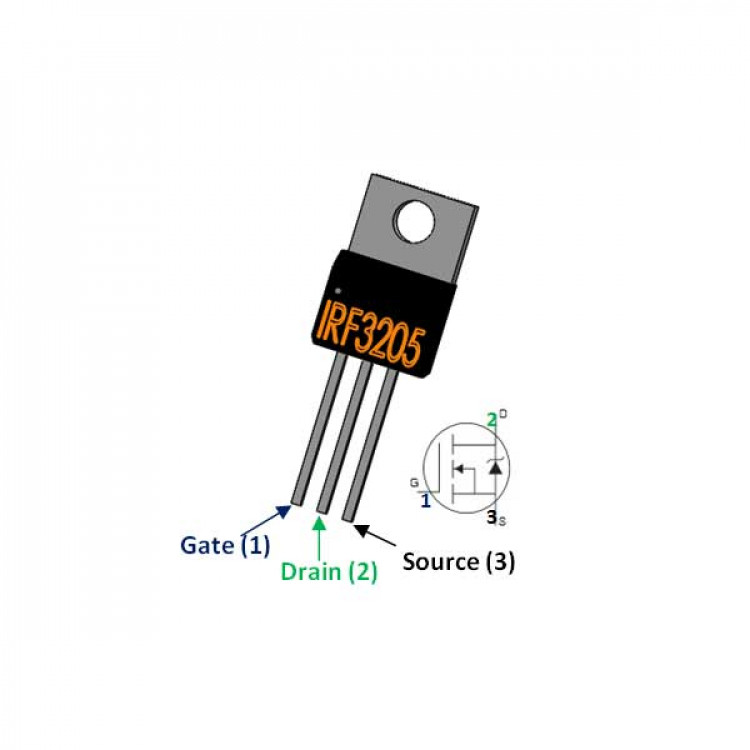

Pin Configuration
Pin Number | Pin Name | Description |
1 | Source | Current flows out through Source |
2 | Gate | Controls the biasing of the MOSFET |
3 | Drain | Current flows in through Drain |
Features
- N-Channel Power MOSFET
- Continuous Drain Current (ID) is 110A when VGS is 10V
- Minimum Gate threshold voltage 2V
- Drain to Source Breakdown Voltage: 55V
- Low On-Resistance of 8.0mΩ
- Gate-Source Voltage is (VGS) is ±20V
- Rise time is 101ns
- It is commonly used with Power Switching circuits
- Available in To-220 package
IRFP3205 Mosfet
The IRF3205 is a high current N-Channel MOSFET that can switch currents upto 110A and 55V. The specialty of the MOSFET is that it has very low on resistance of only 8.0mΩ making it suitable for switching circuits like Inverters, motor speed control, DC-DC converter etc. It is also one of the easily available and cheap MOSFET with a low on-resistance.
So if you looking for a MOSFET to be used in your switching circuit that operates below 55V and less than 110A you can consider using the IRF3205. Note that the IRF3205 has high threshold voltage and hence not ideal for on/off control with embedded controllers. You can try the IRF540N for that purpose.
The IRF3205 is a high current N-Channel MOSFET that can switch currents upto 110A and 55V.
Pin Configuration
Pin Number | Pin Name | Description |
1 | Source | Current flows out through Source |
2 | Gate | Controls the biasing of the MOSFET |
3 | Drain | Current flows in through Drain |
Features
- N-Channel Power MOSFET
- Continuous Drain Current (ID) is 110A when VGS is 10V
- Minimum Gate threshold voltage 2V
- Drain to Source Breakdown Voltage: 55V
- Low On-Resistance of 8.0mΩ
- Gate-Source Voltage is (VGS) is ±20V
- Rise time is 101ns
- It is commonly used with Power Switching circuits
- Available in To-220 package
Watch this video it will give you a clear idea about this product.
