TDA7294_Audio Amplifier Ic.

Product Code: AIT008
Category: Amplifier IC/Transistor

Brand: Original IC

Discount: 0% OFF
Availability: Stock Available

120 TK.

Qty :

- +

Order by Call

Order By WhatsApp

TDA7294 TDA 7294 IC Audio Amplifier Chip Original_100W 40V

VERY HIGH OPERATING VOLTAGE RANGE (±40V)DMOS POWER STAGEHIGH OUTPUT POWER (UP TO 100W MUSIC POWER)MUTING/STAND-BY FUNCTIONSNO SWITCH ON/OFF NOISENO BOUCHEROT CELLSVERY LOW DISTORTIONVERY LOW NOISES.

ERY HIGH OPERATING VOLTAGE RANGE (±40V)
DMOS POWER STAGE
HIGH OUTPUT POWER (UP TO 100W MUSIC POWER)
MUTING/STAND-BY FUNCTIONS
NO SWITCH ON/OFF NOISE
NO BOUCHEROT CELLS
VERY LOW DISTORTION
VERY LOW NOISE
SHORT CIRCUIT PROTECTION
THERMAL SHUTDOWN

DESCRIPTION

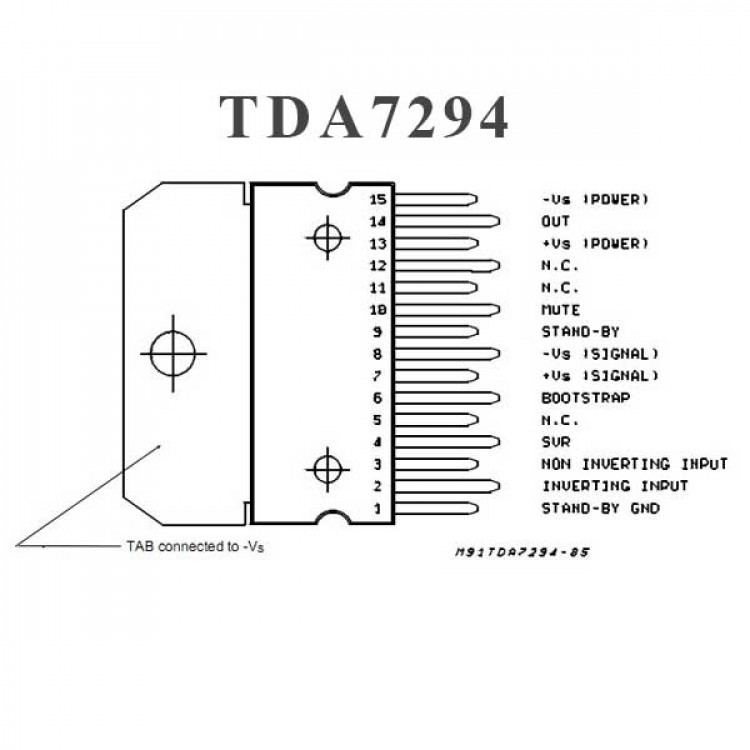

The TDA7294 is a monolithic integrated circuit in
Multiwatt15 package, intended for use as audio
class AB amplifier in Hi-Fi field applications
(Home Stereo, self powered loudspeakers, Topclass TV). Thanks to the wide voltage range and to the high out current capability it is able to supply the highest power into both 4Ω and 8Ω loads even in presence of poor supply regulation, with high Supply Voltage Rejection. The built in muting function with turn on delay simplifies the remote operation avoiding switching on-off noises.

TDA7294 TDA 7294 IC Audio Amplifier Chip Original_100W 40V

VERY HIGH OPERATING VOLTAGE RANGE (±40V)DMOS POWER STAGEHIGH OUTPUT POWER (UP TO 100W MUSIC POWER)MUTING/STAND-BY FUNCTIONSNO SWITCH ON/OFF NOISENO BOUCHEROT CELLSVERY LOW DISTORTIONVERY LOW NOISES.
