TP5100 2 cells / single Lithium ion Battery Charger Module 2A
Product Code: PCM015Category: Buck Boost/Charging Module
TP5100 2 cells / single Lithium ion Battery Charger Module 2A
Order by Call
Description:
TP5100 is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications.Meanwhile, TP5100 built-in input overcurrent, undervoltage protection, over temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.
TP5100 have 5V-18V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three phase, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintain a smaller amount of heat.
TP51OO built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and other external Schottky diode.
Features:
– Double 8.4v / 4.2v lithium rechargeable single
– Programmable charge current. 0. 1A-2A
– Programmable steady precharge current 10% -100%.
– Wide operating voltage, maximum reach I8V
– Red and green LED charge status indicator
– Chip temperature protection, overcurrent protection, undervoltage protection
– Battery temperature protection, reverse battery shutdown, short circuit protection
– Switching frequency 400Khz, usable inductance 20uH and more
– PWR_ON Power battery for switching control
Maximum Ratings:
– Static input supply voltage (VlN): 20V
– BAI: -8.4V-20V
– BAT Short-Circuit Duration: Continuous
– Operating environment Temperature range: -40 ° -85 °
– Storage temperature range: -65 ° – 125 °
Application:
– Portable equipment, various chargers
– Smartphone, PDA, mobile cellular telephone
– MP4, MP5 players, tablets
– HM
– Power Tools
– Walkie-talkie

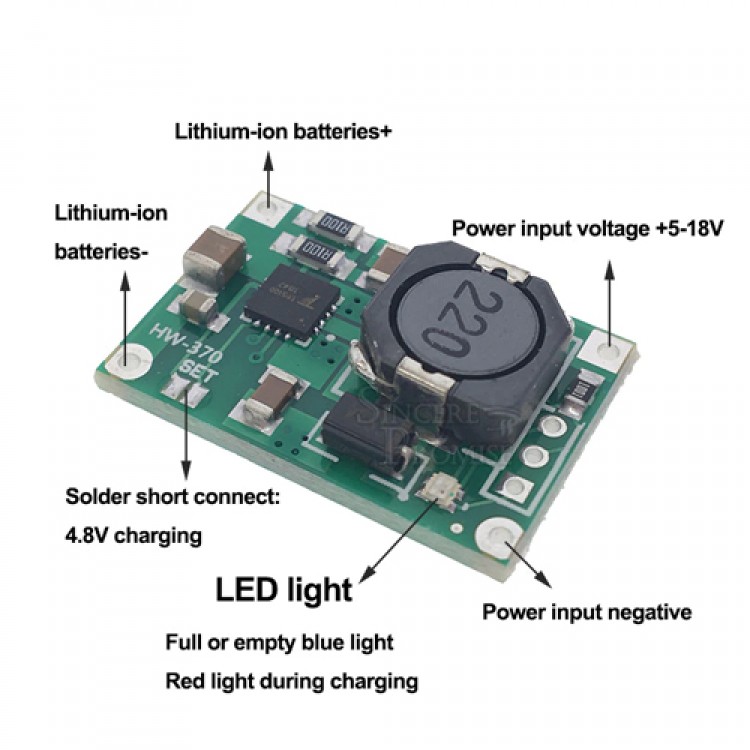

Default shipping settings: 4.2V 2A. The board has with LED, and LED’s external reserve position.
Size: 25 * 17 * 5mm ultra-small size
Input voltage: 5-18V DC power supply
Charge status: full and unloaded blue lights, charging red.
Package Included:
1PCS*TP5100 2 cells / single Lithium Lion Battery Charger Module 2A 18650 Charging PCB
Description:
TP5100 is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications.Meanwhile, TP5100 built-in input overcurrent, undervoltage protection, over temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.
TP5100 have 5V-18V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three phase, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintain a smaller amount of heat.
TP51OO built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and other external Schottky diode.
Features:
– Double 8.4v / 4.2v lithium rechargeable single
– Programmable charge current. 0. 1A-2A
– Programmable steady precharge current 10% -100%.
– Wide operating voltage, maximum reach I8V
– Red and green LED charge status indicator
– Chip temperature protection, overcurrent protection, undervoltage protection
– Battery temperature protection, reverse battery shutdown, short circuit protection
– Switching frequency 400Khz, usable inductance 20uH and more
– PWR_ON Power battery for switching control
Maximum Ratings:
– Static input supply voltage (VlN): 20V
– BAI: -8.4V-20V
– BAT Short-Circuit Duration: Continuous
– Operating environment Temperature range: -40 ° -85 °
– Storage temperature range: -65 ° – 125 °
Application:
– Portable equipment, various chargers
– Smartphone, PDA, mobile cellular telephone
– MP4, MP5 players, tablets
– HM
– Power Tools
– Walkie-talkie
Default shipping settings: 4.2V 2A. The board has with LED, and LED’s external reserve position.
Size: 25 * 17 * 5mm ultra-small size
Input voltage: 5-18V DC power supply
Charge status: full and unloaded blue lights, charging red.
Package Included:
1PCS*TP5100 2 cells / single Lithium Lion Battery Charger Module 2A 18650 Charging PCB
Watch this video it will give you a clear idea about this product.
