LM2596 DC-DC Buck Module With Digital Display
Product Code: PCM010Category: Buck Boost/Charging Module

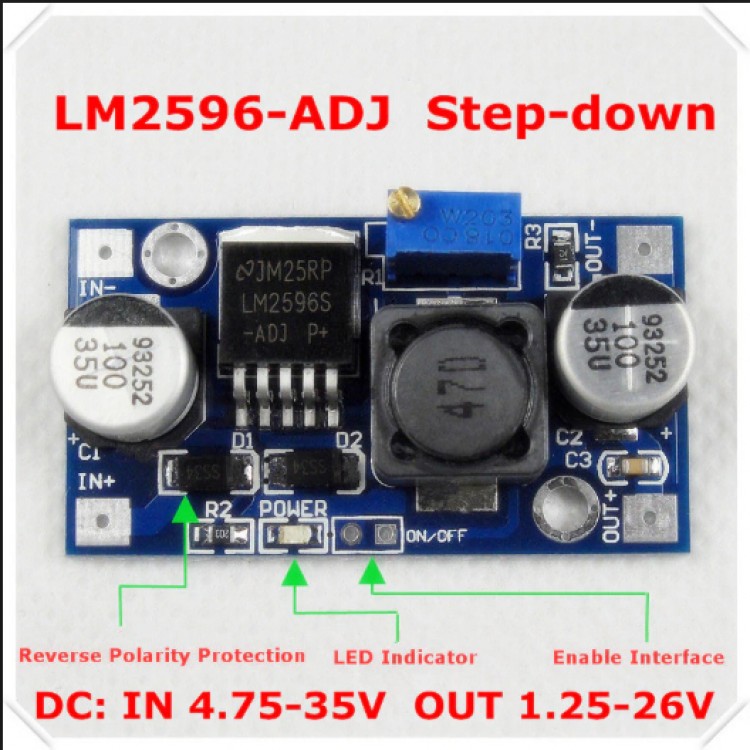

LM2596 DC-DC Buck Module With Digital Display
LM2596 Step-Down DC-DC Buck Converter Power Supply Module with Digital Voltage Display
The LM2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. The application includes Simple High-Efficiency Step-Down (Buck) Regulator, On-Card Switching Regulators, Positive to Negative Converter, etc.
Features/Specs:
• Module Model: LM2596 Buck Converter + Voltmeter
• Cutting Size: 66mm x 35mm
• Input Voltage: DC 4.0～40V
• Output Voltage: 1.25V～37V (continuously adjustable, the input voltage must be 1V higher than the output voltage)
• Output Current: 2A(normal and stable), 3A Max.
• Ripple Frequency: About 150Khz
• Ripple Peak: About 100mV
• Display Color: Red
• Voltage Meter Error: ±0.1V
• Measure Range:4~40V (for measure accurately, please ensure that the input voltage is more than 4V)
• A key switch input and output voltage
• Greenlight: measuring the output voltage
• Red light: measuring the input voltage
• With terminal and retain the wire bonding wiring point
LM2596 Step-Down DC-DC Buck Converter Power Supply Module with Digital Voltage Display
The LM2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. The application includes Simple High-Efficiency Step-Down (Buck) Regulator, On-Card Switching Regulators, Positive to Negative Converter, etc.
Features/Specs:
• Module Model: LM2596 Buck Converter + Voltmeter
• Cutting Size: 66mm x 35mm
• Input Voltage: DC 4.0～40V
• Output Voltage: 1.25V～37V (continuously adjustable, the input voltage must be 1V higher than the output voltage)
• Output Current: 2A(normal and stable), 3A Max.
• Ripple Frequency: About 150Khz
• Ripple Peak: About 100mV
• Display Color: Red
• Voltage Meter Error: ±0.1V
• Measure Range:4~40V (for measure accurately, please ensure that the input voltage is more than 4V)
• A key switch input and output voltage
• Greenlight: measuring the output voltage
• Red light: measuring the input voltage
• With terminal and retain the wire bonding wiring point
Watch this video it will give you a clear idea about this product.
